Parameter Summary

Parameter	Label	"over switch"	"over climate"	"over valve"	"central configuration"
`name`	Name	X	X	X	-
`thermostat_type`	Thermostat type	X	X	X	-
`temperature_sensor_entity_id`	Temperature sensor entity id	X	X (auto-regulation)	X	-
`external_temperature_sensor_entity_id`	External temperature sensor entity id	X	X (auto-regulation)	X	X
`cycle_min`	Cycle duration (minutes)	X	X	X	-
`temp_min`	Minimum allowed temperature	X	X	X	X
`temp_max`	Maximum allowed temperature	X	X	X	X
`device_power`	Device power	X	X	X	-
`use_central_mode`	Enable centralized control	X	X	X	-
`use_window_feature`	With window detection	X	X	X	-
`use_motion_feature`	With motion detection	X	X	X	-
`use_power_feature`	With power management	X	X	X	-
`use_presence_feature`	With presence detection	X	X	X	-
`heater_entity1_id`	1st heater	X	-	-	-
`heater_entity2_id`	2nd heater	X	-	-	-
`heater_entity3_id`	3rd heater	X	-	-	-
`heater_entity4_id`	4th heater	X	-	-	-
`heater_keep_alive`	Switch refresh interval	X	-	-	-
`proportional_function`	Algorithm	X	-	-	-
`climate_entity1_id`	Underlying thermostat	-	X	-	-
`climate_entity2_id`	2nd underlying thermostat	-	X	-	-
`climate_entity3_id`	3rd underlying thermostat	-	X	-	-
`climate_entity4_id`	4th underlying thermostat	-	X	-	-
`valve_entity1_id`	Underlying valve	-	-	X	-
`valve_entity2_id`	2nd underlying valve	-	-	X	-
`valve_entity3_id`	3rd underlying valve	-	-	X	-
`valve_entity4_id`	4th underlying valve	-	-	X	-
`ac_mode`	Use of air conditioning (AC)?	X	X	X	-
`tpi_coef_int`	Coefficient for internal temperature delta	X	-	X	X
`tpi_coef_ext`	Coefficient for external temperature delta	X	-	X	X
`frost_temp`	Frost preset temperature	X	X	X	X
`window_sensor_entity_id`	Window sensor (entity id)	X	X	X	-
`window_delay`	Delay before turn-off (seconds)	X	X	X	X
`window_auto_open_threshold`	High drop threshold for automatic detection (°/min)	X	X	X	X
`window_auto_close_threshold`	Low drop threshold for automatic closure detection (°/min)	X	X	X	X
`window_auto_max_duration`	Maximum duration of automatic turn-off (minutes)	X	X	X	X
`motion_sensor_entity_id`	Motion sensor entity id	X	X	X	-
`motion_delay`	Delay before motion is considered (seconds)	X	X	X	-
`motion_off_delay`	Delay before end of motion is considered (seconds)	X	X	X	X
`motion_preset`	Preset to use if motion is detected	X	X	X	X
`no_motion_preset`	Preset to use if no motion is detected	X	X	X	X
`power_sensor_entity_id`	Total power sensor (entity id)	X	X	X	X
`max_power_sensor_entity_id`	Max power sensor (entity id)	X	X	X	X
`power_temp`	Temperature during load shedding	X	X	X	X
`presence_sensor_entity_id`	Presence sensor entity id (true if someone is present)	X	X	X	-
`minimal_activation_delay`	Minimum activation delay	X	-	-	X
`minimal_deactivation_delay`	Minimum deactivation delay	X	-	-	X
`safety_delay_min`	Maximum delay between two temperature measurements	X	-	X	X
`safety_min_on_percent`	Minimum power percentage to enter security mode	X	-	X	X
`auto_regulation_mode`	Auto-regulation mode	-	X	-	-
`auto_regulation_dtemp`	Auto-regulation threshold	-	X	-	-
`auto_regulation_period_min`	Minimum auto-regulation period	-	X	-	-
`inverse_switch_command`	Inverse the switch command (for switches with pilot wire)	X	-	-	-
`auto_fan_mode`	Automatic fan mode	-	X	-	-
`auto_regulation_use_device_temp`	Use of internal temperature of the underlying device	-	X	-	-
`use_central_boiler_feature`	Add central boiler control	-	-	-	X
`central_boiler_activation_service`	Boiler activation service	-	-	-	X
`central_boiler_deactivation_service`	Boiler deactivation service	-	-	-	X
`central_boiler_activation_delay_sec`	Activation delay (seconds)	-	-	-	X
`used_by_controls_central_boiler`	Indicates if the VTherm controls the central boiler	X	X	X	-
`use_auto_start_stop_feature`	Indicates if the auto start/stop feature is enabled	-	X	-	-
`auto_start_stop_level`	The detection level for auto start/stop	-	X	-	-

Sensors

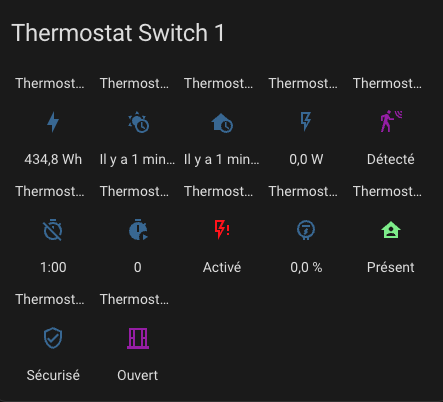

With the thermostat, sensors are available to visualize alerts and the internal state of the thermostat. These are available in the entities of the device associated with the thermostat:

In order, there are:

the main climate entity for thermostat control,
the entity allowing the auto-start/stop feature,
the entity allowing VTherm to follow changes in the underlying device,
the energy consumed by the thermostat (value that increments continuously),
the time of receipt of the last external temperature,
the time of receipt of the last internal temperature,
the average power of the device during the cycle (for TPI only),
the time spent in the off state during the cycle (TPI only),
the time spent in the on state during the cycle (TPI only),
the load shedding state,
the power percentage during the cycle (TPI only),
the presence state (if presence management is configured),
the security state,
the window state (if window management is configured),
the motion state (if motion management is configured),
the valve opening percentage (for over_valve type),

The presence of these entities depends on whether the associated feature is enabled.

To color the sensors, add these lines and customize them as needed in your configuration.yaml:

frontend:
  themes:
    versatile_thermostat_theme:
      state-binary_sensor-safety-on-color: "#FF0B0B"
      state-binary_sensor-power-on-color: "#FF0B0B"
      state-binary_sensor-window-on-color: "rgb(156, 39, 176)"
      state-binary_sensor-motion-on-color: "rgb(156, 39, 176)"
      state-binary_sensor-presence-on-color: "lightgreen"
      state-binary_sensor-running-on-color: "orange"

and choose the theme versatile_thermostat_theme in the panel configuration. You will get something like this:

Actions (Services)

This custom implementation offers specific actions (services) to facilitate integration with other Home Assistant components.

Force Presence/Occupation

This service allows you to force the presence state independently of the presence sensor. This can be useful if you want to manage presence via a service rather than a sensor. For example, you can use your alarm to force absence when it is turned on.

The code to call this service is as follows:

service: versatile_thermostat.set_presence
data:
    presence: "off"
target:
    entity_id: climate.my_thermostat

Modify Security Settings

This service allows you to dynamically modify the security settings described here Advanced Configuration. If the thermostat is in security mode, the new settings are applied immediately.

To change the security settings, use the following code:

service: versatile_thermostat.set_safety
data:
    min_on_percent: "0.5"
    default_on_percent: "0.1"
    delay_min: 60
target:
    entity_id: climate.my_thermostat

ByPass Window Check

This service allows you to enable or disable a bypass for the window check. It allows the thermostat to continue heating even if the window is detected as open. When set to true, changes to the window's status will no longer affect the thermostat. When set to false, the thermostat will be disabled if the window is still open.

To change the bypass setting, use the following code:

service: versatile_thermostat.set_window_bypass
data:
    bypass: true
target:
    entity_id: climate.my_thermostat

Lock / Unlock Services

versatile_thermostat.lock - Locks a thermostat to prevent configuration changes
versatile_thermostat.unlock - Unlocks a thermostat to allow configuration changes

See Lock Feature for details.

Change TPI Parameters

All TPI parameters configurable here can be modified by a service. These changes are persistent and survive a restart. They are applied immediately and a thermostat update is performed instantly when parameters are changed.

Each parameter is optional. If it is not provided its current value is kept.

To change the TPI parameters use the following code:

action: versatile_thermostat.set_tpi_parameters
data:
  tpi_coef_int: 0.5
  tpi_coef_ext: 0.01
  minimal_activation_delay: 10
  minimal_deactivation_delay: 10
  tpi_threshold_low: -2
  tpi_threshold_high: 5
target:
  entity_id: climate.sonoff_trvzb

Timed Preset

These services allow you to temporarily force a preset on a thermostat for a specified duration. See Timed Preset for details.

To activate a timed preset:

service: versatile_thermostat.set_timed_preset
data:
  preset: "boost"
  duration_minutes: 30
target:
  entity_id: climate.my_thermostat

To cancel a timed preset before its duration ends:

service: versatile_thermostat.cancel_timed_preset
target:
  entity_id: climate.my_thermostat

Events

The key events of the thermostat are notified via the message bus. The following events are notified:

versatile_thermostat_safety_event: the thermostat enters or exits the security preset
versatile_thermostat_power_event: the thermostat enters or exits the power preset
versatile_thermostat_temperature_event: one or both temperature measurements of the thermostat haven't been updated for more than `safety_delay_min`` minutes
versatile_thermostat_hvac_mode_event: the thermostat is turned on or off. This event is also broadcast at the thermostat's startup
versatile_thermostat_preset_event: a new preset is selected on the thermostat. This event is also broadcast at the thermostat's startup
versatile_thermostat_central_boiler_event: an event indicating a change in the boiler's state
versatile_thermostat_auto_start_stop_event: an event indicating a stop or restart made by the auto-start/stop function
versatile_thermostat_timed_preset_event: an event indicating the activation or deactivation of a timed preset

If you've followed along, when a thermostat switches to security mode, 3 events are triggered:

versatile_thermostat_temperature_event to indicate that a thermometer is no longer responding,
versatile_thermostat_preset_event to indicate the switch to the security preset,
versatile_thermostat_hvac_mode_event to indicate the potential shutdown of the thermostat

Each event carries the event's key values (temperatures, current preset, current power, ...) as well as the thermostat's states.

You can easily capture these events in an automation, for example, to notify users.

Custom attributes

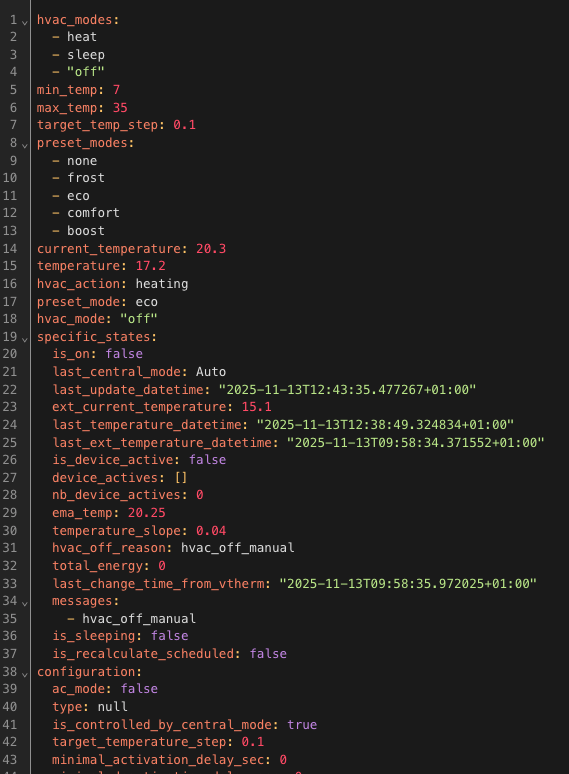

To tune the algorithm, you have access to the entire context seen and calculated by the thermostat through dedicated attributes. You can see (and use) these attributes in the HA "Developer Tools / States" UI. Enter your thermostat and you will see something like this:

For a VTherm

The custom attributes are as follows:

Attribute	Meaning
`hvac_modes`	The list of modes supported by the thermostat
`temp_min`	The minimum temperature
`temp_max`	The maximum temperature
`target_temp_step`.	The target temperature step
`preset_modes`	The visible presets for this thermostat. Hidden presets are not displayed here
`current_temperature`	The current temperature as reported by the sensor
`temperature`	The target temperature
`hvac_action`	The action currently being performed by the heater. Can be idle, heating, cooling
`preset_mode`	The currently selected preset. Can be one of 'preset_modes' or a hidden preset like power
`hvac_mode`	The currently selected mode. Can be heat, cool, fan_only, off
`friendly_name`	The thermostat name
`supported_features`	A combination of all features supported by this thermostat. See the official climate integration documentation for more information
`is_presence_configured`	Indicates if the presence detection function is configured
`is_power_configured`	Indicates if the power shedding function is configured
`is_motion_configured`	Indicates if the motion detection function is configured
`is_window_configured`	Indicates if the window opening detection function by sensor is configured
`is_window_auto_configured`	Indicates if the window opening detection function by temperature drop is configured
`is_safety_configured`	Indicates if the temperature sensor loss detection function is configured
`is_auto_start_stop_configured`	Indicates if the auto-start/stop function is configured (`over_climate` only)
`is_over_switch`	Indicates if the VTherm is of type `over_switch`
`is_over_valve`	Indicates if the VTherm is of type `over_valve`
`is_over_climate`	Indicates if the VTherm is of type `over_climate`
`is_over_climate_valve`	Indicates if the VTherm is of type `over_climate_valve` (`over_climate` with direct valve control)
SECTION `specific_states`	------
`is_on`	true if the VTherm is on (`hvac_mode` different from Off)
`last_central_mode`	The last central mode used (None if the VTherm is not centrally controlled)
`last_update_datetime`	The date and time in ISO8866 format of this state
`ext_current_temperature`	The current outdoor temperature
`last_temperature_datetime`	The date and time in ISO8866 format of the last indoor temperature reception
`last_ext_temperature_datetime`	The date and time in ISO8866 format of the last outdoor temperature reception
`should_device_be_active`	true if the underlying is active
`device_actives`	The list of underlying devices currently seen as active
`nb_device_actives`	The number of underlying devices currently seen as active
`ema_temp`	The current average temperature. Calculated as the exponential moving average of previous values. Used to calculate `temperature_slope`
`temperature_slope`	The current temperature slope in °/hour
`hvac_off_reason`	Indicates the reason for the VTherm shutdown (hvac_off). Can be Window, Auto-start/stop or Manual
`total_energy`	An estimate of the total energy consumed by this VTherm
`last_change_time_from_vtherm`	The date/time of the last change made by VTherm
`messages`	A list of messages explaining the current state calculation. See state messages
`is_sleeping`	Indicates the VTherm is in sleep mode (valid for VTherm of type `over_climate` with direct valve control)
`is_recalculate_scheduled`	Indicates that the recalculation of the underlying state has been delayed by time filtering to limit the number of interactions with the controlled equipment
SECTION `configuration`	------
`ac_mode`	true if the equipment supports Cooling mode in addition to Heating mode
`type`	The VTherm type (`over_switch`, `over_valve`, `over_climate`, `over_climate_valve`)
`is_controlled_by_central_mode`	True if the VTherm can be centrally controlled
`target_temperature_step`	The target temperature step (same as `target_temp_step`)
`minimal_activation_delay_sec`	The minimum activation delay in seconds (used with TPI only)
`minimal_deactivation_delay_sec`	The minimum deactivation delay in seconds (used with TPI only)
`timezone`	The timezone used for dates/times
`temperature_unit`	The temperature unit used
`is_used_by_central_boiler`	Indicates if the VTherm can control the central boiler
`max_on_percent`	The maximum power percentage value (used with TPI only)
`have_valve_regulation`	Indicates if the VTherm uses regulation by direct valve control (`over_climate` with valve control)
`cycle_min`	The cycle duration in minutes
SECTION `preset_temperatures`	------
`[eco/confort/boost]_temp`	The configured temperature for preset xxx
`[eco/confort/boost]_away_temp`	The configured temperature for preset xxx when presence is disabled or not_home
SECTION `current_state`	------
`hvac_mode`	The calculated current mode
`target_temperature`	The calculated current temperature
`preset`	The calculated current preset
SECTION `requested_state`	------
`hvac_mode`	The mode requested by the user
`target_temperature`	The temperature requested by the user
`preset`	The preset requested by the user
SECTION `presence_manager`	------ only if `is_presence_configured` is `true`
`presence_sensor_entity_id`	The entity used for presence detection
`presence_state`	`on` if presence is detected. `off` if absence is detected
SECTION `motion_manager`	------ only if `is_motion_configured` is `true`
`motion_sensor_entity_id`	The entity used for motion detection
`motion_state`	`on` if motion is detected. `off` if no motion is detected
`motion_delay_sec`	The delay in seconds for motion detection when the sensor changes from `off` to `on`
`motion_off_delay_sec`	The delay in seconds for no motion detection when the sensor changes from `on` to `off`
`motion_preset`	The preset to use if motion is detected
`no_motion_preset`	The preset to use if no motion is detected
SECTION `power_manager`	------ only if `is_power_configured` is `true`
`power_sensor_entity_id`	The entity providing the home power consumption
`max_power_sensor_entity_id`	The entity providing the maximum authorized power before shedding
`overpowering_state`	`on` if over-power detection is detected. `off` otherwise
`device_power`	The power consumed by the underlying when active
`power_temp`	The temperature to use when shedding is activated
`current_power`	The current home power consumption as reported by sensor `power_sensor_entity_id`
`current_max_power`	The maximum authorized power as reported by sensor `max_power_sensor_entity_id`
`mean_cycle_power`	An estimate of the average power consumed by the equipment over a cycle
SECTION `window_manager`	------ only if `is_window_configured` or `is_window_auto_configured` is `true`
`window_state`	`on` if window open detection by sensor is active. `off` otherwise
`window_auto_state`	`on` if window open detection by automatic detection algorithm is active. `off` otherwise
`window_action`	The action taken when window open detection is effective. Can be `window_frost_temp`, `window_eco_temp`, `window_turn_off`, `window_fan_only`
`is_window_bypass`	`true` if window detection bypass is enabled
`window_sensor_entity_id`	The window open detection sensor (if `is_window_configured`)
`window_delay_sec`	The delay before detection when the sensor state changes from `off` to `on`
`window_off_delay_sec`	The delay before detection ends when the sensor state changes from `on` to `off`
`window_auto_open_threshold`	The auto-detection threshold in °/hour
`window_auto_close_threshold`	The detection end threshold in °/hour
`window_auto_max_duration`	The maximum auto-detection duration in minutes
SECTION `safety_manager`	------
`safety_state`	The safety state. `on` or `off`
`safety_delay_min`	The delay before activating safety mode when one of the 2 temperature sensors stops sending measurements
`safety_min_on_percent`	Heating percentage below which the thermostat will not go into safety mode (for TPI only)
`safety_default_on_percent`	Heating percentage used when the thermostat is in safety mode (for TPI only)
SECTION `auto_start_stop_manager`	------ only if `is_auto_start_stop_configured`
`is_auto_stop_detected`	`true` if automatic stop is triggered
`auto_start_stop_enable`	`true` if the auto-start/stop function is authorized
`auto_start_stop_level`	The auto-start/stop level. Can be `auto_start_stop_none`, `auto_start_stop_very_slow`, `auto_start_stop_slow`, `auto_start_stop_medium`, `auto_start_stop_fast`
`auto_start_stop_dtmin`	The `dt` parameter in minutes of the auto-start/stop algorithm
`auto_start_stop_accumulated_error`	The `accumulated_error` value of the auto-start/stop algorithm
`auto_start_stop_accumulated_error_threshold`	The `accumulated_error` threshold of the auto-start/stop algorithm
`auto_start_stop_last_switch_date`	The date/time of the last switch made by the auto-start/stop algorithm
SECTION `timed_preset_manager`	------
`timed_preset_active`	`true` if a timed preset is active
`timed_preset_preset`	The name of the active timed preset (or `null` if none)
`timed_preset_end_time`	The end date/time of the timed preset
`remaining_time_min`	The remaining time in minutes before the timed preset ends (integer)
SECTION `vtherm_over_switch`	------ only if `is_over_switch`
`is_inversed`	`true` if the command is inverted (pilot wire with diode)
`keep_alive_sec`	The keep-alive delay or 0 if not configured
`underlying_entities`	the list of entities controlling the underlyings
`on_percent`	The on percentage calculated by the TPI algorithm
`on_time_sec`	The On period in sec. Must be `on_percent * cycle_min`
`off_time_sec`	The off period in sec. Must be `(1 - on_percent) * cycle_min`
`function`	The algorithm used for cycle calculation
`tpi_coef_int`	The `coef_int` of the TPI algorithm
`tpi_coef_ext`	The `coef_ext` of the TPI algorithm
`calculated_on_percent`	The raw `on_percent` calculated by the TPI algorithm
`vswitch_on_commands`	The list of custom commands for turning on the underlying
`vswitch_off_commands`	The list of custom commands for turning off the underlying
SECTION `vtherm_over_climate`	------ only if `is_over_climate` or `is_over_climate_valve`
`start_hvac_action_date`	Date/time of the last turn-on (`hvac_action`)
`underlying_entities`	the list of entities controlling the underlyings
`is_regulated`	`true` if auto-regulation is configured
`auto_fan_mode`	The auto-fan mode. Can be `auto_fan_none`, `auto_fan_low`, `auto_fan_medium`, `auto_fan_high`, `auto_fan_turbo`
`current_auto_fan_mode`	The current auto-fan mode. Can be `auto_fan_none`, `auto_fan_low`, `auto_fan_medium`, `auto_fan_high`, `auto_fan_turbo`
`auto_activated_fan_mode`	The activated auto-fan mode. Can be `auto_fan_none`, `auto_fan_low`, `auto_fan_medium`, `auto_fan_high`, `auto_fan_turbo`
`auto_deactivated_fan_mode`	The deactivated auto-fan mode. Can be `auto_fan_none`, `auto_fan_low`, `auto_fan_medium`, `auto_fan_high`, `auto_fan_turbo`
`follow_underlying_temp_change`	`true` if VTherm should follow changes made directly on the underlying
`auto_regulation_use_device_temp`	`true` if VTherm should use the underlying temperature for regulation calculation (should not be used in normal cases)
SUB-SECTION `regulation`	------ only if `is_regulated`
`regulated_target_temperature`	The target temperature calculated by auto-regulation
`auto_regulation_mode`	The auto-regulation mode. Can be `auto_regulation_none`, `auto_regulation_valve`, `auto_regulation_slow`, `auto_regulation_light`, `auto_regulation_medium`, `auto_regulation_strong`, `auto_regulation_expert`
`regulation_accumulated_error`	The `regulation_accumulated_error` value of the auto-regulation algorithm
SECTION `vtherm_over_valve`	------ only if `is_over_valve`
`valve_open_percent`	The valve opening percentage
`underlying_entities`	the list of entities controlling the underlyings
`on_percent`	The on percentage calculated by the TPI algorithm
`on_time_sec`	The On period in sec. Must be `on_percent * cycle_min`
`off_time_sec`	The off period in sec. Must be `(1 - on_percent) * cycle_min`
`function`	The algorithm used for cycle calculation
`tpi_coef_int`	The `coef_int` of the TPI algorithm
`tpi_coef_ext`	The `coef_ext` of the TPI algorithm
`auto_regulation_dpercent`	The valve will not be controlled if the opening delta is less than this value
`auto_regulation_period_min`	The time filtering parameter value in minutes. Corresponds to the minimum interval between 2 valve commands (excluding user changes).
`last_calculation_timestamp`	The date/time of the last valve opening command
`calculated_on_percent`	The raw `on_percent` calculated by the TPI algorithm
SECTION `vtherm_over_climate_valve`	------ only if `is_over_climate_valve`
`have_valve_regulation`	Indicates if VTherm uses regulation by direct valve control (`over_climate` with valve control). Is always `true` in this case
SUB-SECTION `valve_regulation`	------ only if `have_valve_regulation`
`underlyings_valve_regulation`	the list of entities controlling valve opening (`opening degrees`), valve closing (`closing_degrees`) and calibration (`offset_calibration`)
`valve_open_percent`	The valve opening percentage after applying the minimum allowed (see `min_opening_degrees`)
`on_percent`	The on percentage calculated by the TPI algorithm
`power_percent`	The applied power percentage
`function`	The algorithm used for cycle calculation
`tpi_coef_int`	The `coef_int` of the TPI algorithm
`tpi_coef_ext`	The `coef_ext` of the TPI algorithm
`min_opening_degrees`	The list of minimum authorized openings (one value per underlying)
`auto_regulation_dpercent`	The valve will not be controlled if the opening delta is less than this value
`auto_regulation_period_min`	The time filtering parameter value in minutes. Corresponds to the minimum interval between 2 valve commands (excluding user changes).
`last_calculation_timestamp`	The date/time of the last valve opening command

For central configuration

The custom attributes of the central configuration are accessible in Developer Tools / States on the binary_sensor.central_configuration_central_boiler entity:

Attribute	Meaning
`central_boiler_state`	The state of the central boiler. Can be `on` or `off`
`is_central_boiler_configured`	Indicates whether the central boiler feature is configured
`is_central_boiler_ready`	Indicates whether the central boiler is ready
SECTION `central_boiler_manager`	------
`is_on`	true if the central boiler is on
`activation_scheduled`	true if a boiler activation is scheduled (see `central_boiler_activation_delay_sec`)
`delayed_activation_sec`	The boiler activation delay in seconds
`nb_active_device_for_boiler`	The number of active devices controlling the boiler
`nb_active_device_for_boiler_threshold`	The threshold of active devices before activating the boiler
`total_power_active_for_boiler`	The total active power of devices controlling the boiler
`total_power_active_for_boiler_threshold`	The total power threshold before activating the boiler
SUB-SECTION `service_activate`	------
`service_domain`	The domain of the activation service (e.g., switch)
`service_name`	The name of the activation service (e.g., turn_on)
`entity_domain`	The domain of the entity controlling the boiler (e.g., switch)
`entity_name`	The name of the entity controlling the boiler
`entity_id`	The complete identifier of the entity controlling the boiler
`data`	Additional data passed to the activation service
SUB-SECTION `service_deactivate`	------
`service_domain`	The domain of the deactivation service (e.g., switch)
`service_name`	The name of the deactivation service (e.g., turn_off)
`entity_domain`	The domain of the entity controlling the boiler (e.g., switch)
`entity_name`	The name of the entity controlling the boiler
`entity_id`	The complete identifier of the entity controlling the boiler
`data`	Additional data passed to the deactivation service

Example values:

central_boiler_state: "off"
is_central_boiler_configured: true
is_central_boiler_ready: true
central_boiler_manager:
  is_on: false
  activation_scheduled: false
  delayed_activation_sec: 10
  nb_active_device_for_boiler: 1
  nb_active_device_for_boiler_threshold: 3
  total_power_active_for_boiler: 50
  total_power_active_for_boiler_threshold: 500
  service_activate:
    service_domain: switch
    service_name: turn_on
    entity_domain: switch
    entity_name: controle_chaudiere
    entity_id: switch.controle_chaudiere
    data: {}
  service_deactivate:
    service_domain: switch
    service_name: turn_off
    entity_domain: switch
    entity_name: controle_chaudiere
    entity_id: switch.controle_chaudiere
    data: {}
device_class: running
icon: mdi:water-boiler-off
friendly_name: Central boiler

These attributes will be requested when seeking help.

State messages

The specific_states.messages custom attribute contains a list of message codes that explain the current state. Messages can be:

Code	Meaning
`overpowering_detected`	An overpowering situation is detected
`safety_detected`	A temperature measurement fault is detected that triggered VTherm safety mode
`target_temp_window_eco`	Window detection forced the target temperature to the Eco preset
`target_temp_window_frost`	Window detection forced the target temperature to the Frost preset
`target_temp_power`	Power shedding forced the target temperature with the value configured for shedding
`target_temp_central_mode`	The target temperature was forced by central mode
`target_temp_activity_detected`	The target temperature was forced by motion detection
`target_temp_activity_not_detected`	The target temperature was forced by no motion detection
`target_temp_absence_detected`	The target temperature was forced by absence detection

Note: these messages are available in the VTherm UI Card under the information icon.
